| ブランド名: | Casun |
| モデル番号: | 86SHD4502-37B |
| MOQ: | 1pcs |
| 価格: | $100-$390 |
| 支払条件: | L/C,D/P,D/A,T/T |
| 供給能力: | 月あたり100000個 |
Nema 34 Hybrid Stepper Motor, 86*86*149mm.1.8 Degree 2 Phase, 12-13N.m Holding Torque.
Top Manufacturer Supplier 86*149mm 1.8 Degree Nema 34 Stepper Motors 12N.M For Cnc Kit Electric Motor
The 86mm Hybrid stepper motor combines the characteristics of stepper motors, enabling precise positioning control and being suitable for applications that require high-precision positioning.

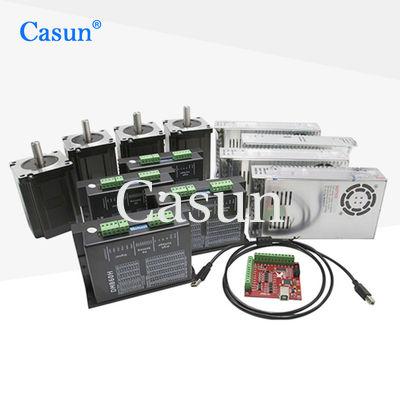

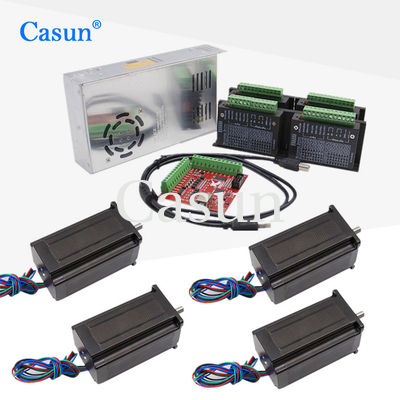

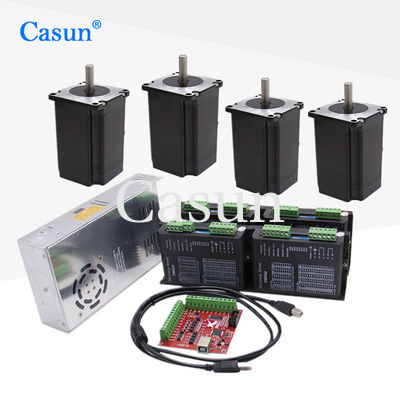

The package includes: 4 motors, 4 drivers, 4 power supplies, and 1 controller
Features:
|
Step Angel
|
1.8 ° |
|
Fram Size
|
86 mm |
|
Number of Phase
|
2 Phase |
|
Rated Current
|
6.0 A |
|
Holding Torque
|
12 N.m |
|
Resistance
|
1.4 ohm |
|
Inductance
|
13.5 mH |
|
Rotor Inertia
|
3600 g-cm² |
|
Motor weight
|
5.0 kg |
|
Shatf
|
37 mm |
|
Connection
|
Bipolar |
Motor
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
