| ブランド名: | Casun |
| モデル番号: | 57BS94R120-2419-20GQ |
| MOQ: | 5 |
| 価格: | $46~$48 |
| 支払条件: | D/A,T/T,L/C,D/P |
| 供給能力: | 10000+PCS+月 |
| Attribute | Value |
|---|---|
| Holding Torque | 0.6 N.m |
| Voltage | 24 V |
| Current | 5 A |
| Body Length | 186 mm |
| Weight | 2 kg |
| Phase Resistance | 0.5 ohm ±10% (At 20℃) |
| Shaft Length | 28 mm |
| Phase | 2 |
| Insulation Class | Class B |

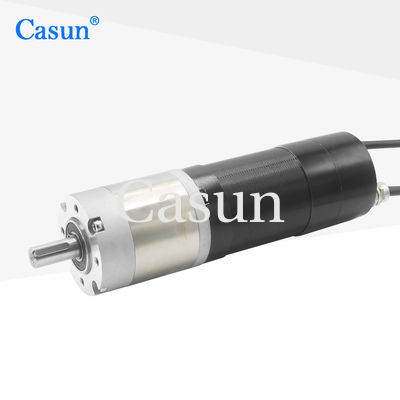

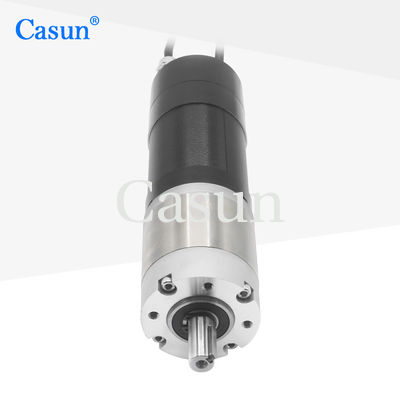

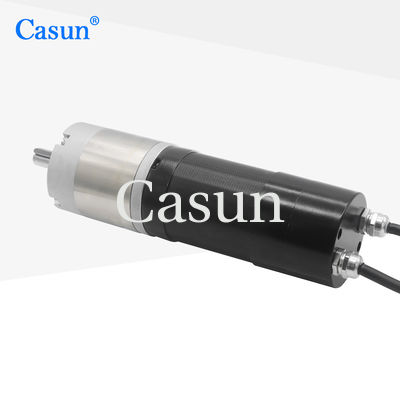

The Casun Nema 23 BLDC Motor integrates a high-efficiency brushless DC design with a precision reduction gearbox, delivering 3000 RPM and 0.6N.m torque for robust automation performance. This compact yet powerful solution ensures reliable speed control and durability in demanding industrial applications.
| Step Angle | 1.8° |
| Frame Size | 186 mm |
| Number of Poles | 8 |
| Rated Current | 5 Amp |
| Holding Torque | 0.6 N.m |
| Resistance | 0.5 ohm± 10%(At 20℃) |
| Inductance | 1.2 mH ±20% |
| Rotor Inertia | 38 g.cm² |
| Motor weight | 0.2kg |
| Connection | Bipolar |
| Step Angle | 1.8° |
| Maximum Temperature | 80°C maximum |
| Ambient Temperature | -20°C to 50°C |
| Storage Temperature | -20°C to 100°C |
| Humidity Range | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130°C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
| Voltage | 5 V |
| Output | A + A - B + B - Z + Z - |
Customization OptionsIf our standard motor cannot meet your needs, we can customize the motor according to your requirements.
Customized content includes but is not limited to:
