| ブランド名: | Casun |
| モデル番号: | 20LCH0011-04 |
| MOQ: | 5 |
| 価格: | $6.9~$8.2 |
| 支払条件: | D/A,T/T,L/C,D/P |
| 供給能力: | 10000+PCS+Month |
| Attribute | Value |
|---|---|
| Holding Torque | 60 g.cm |
| Voltage | 24 V |
| Current | 0.2 A |
| Body Length | 15.1 mm |
| Weight | 0.03 kg |
| Phase Resistance | 20 ohm ±10% (At 20℃) |
| Shaft Length | 27 mm |
| Phase | 2 |
| Insulation Class | Class B |

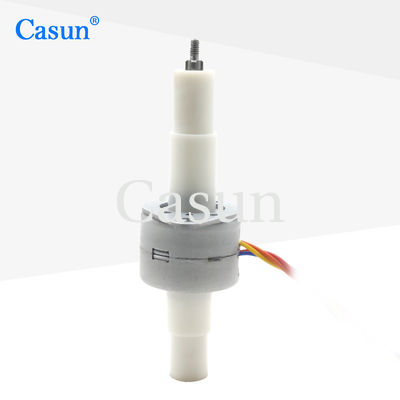

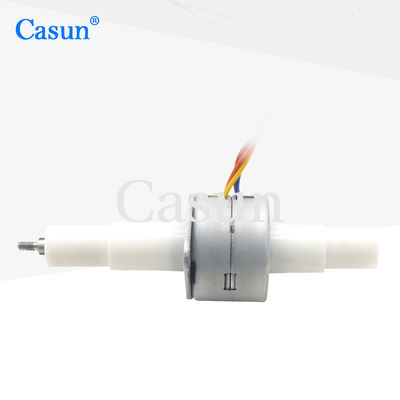

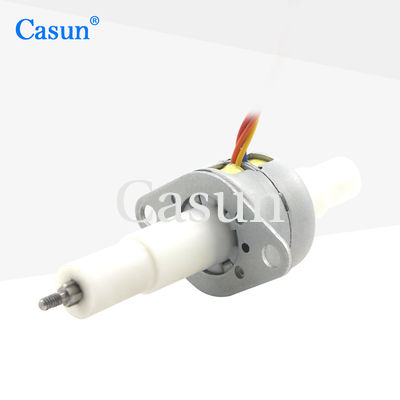

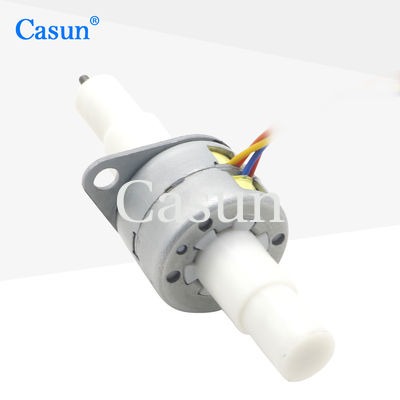

The Casun PM (Permanent Magnet) Stepper Motor represents a pinnacle of reliability and accuracy in motion control. Designed specifically for demanding automation applications, this motor delivers precise incremental motion, ensuring exceptional performance in positioning and speed control tasks.
| Step Angle | 15° |
| Frame Size | 15.1 mm |
| Number of Phase | 2-2 Phase |
| Rated Current | 0.2 Amp |
| Holding Torque | 60g.cm |
| Resistance | 20 ohm |
| Inductance | 8 mH |
| Rotor Inertia | 38 g.cm² |
| Motor weight | 30 g |
| Connection | Bipolar |
| Step Angle | 15° |
| Maximum Temperature | 80°C maximum |
| Ambient Temperature | -20°C to 50°C |
| Storage Temperature | -20°C to 100°C |
| Humidity Range | 85% or less, non-condensing |
| Magnet Wire Insulation | Class B 130°C |
| Insulation Resistance | 100M Ohm at 500 VDC |
| Dielectric Strength | 500 VDC for 1 min |
| Voltage | 5 V |
| Output | A + A - B + B - Z + Z - |
If our standard motor cannot meet your needs, we can customize the motor according to your requirements.
Customized content includes but is not limited to:
